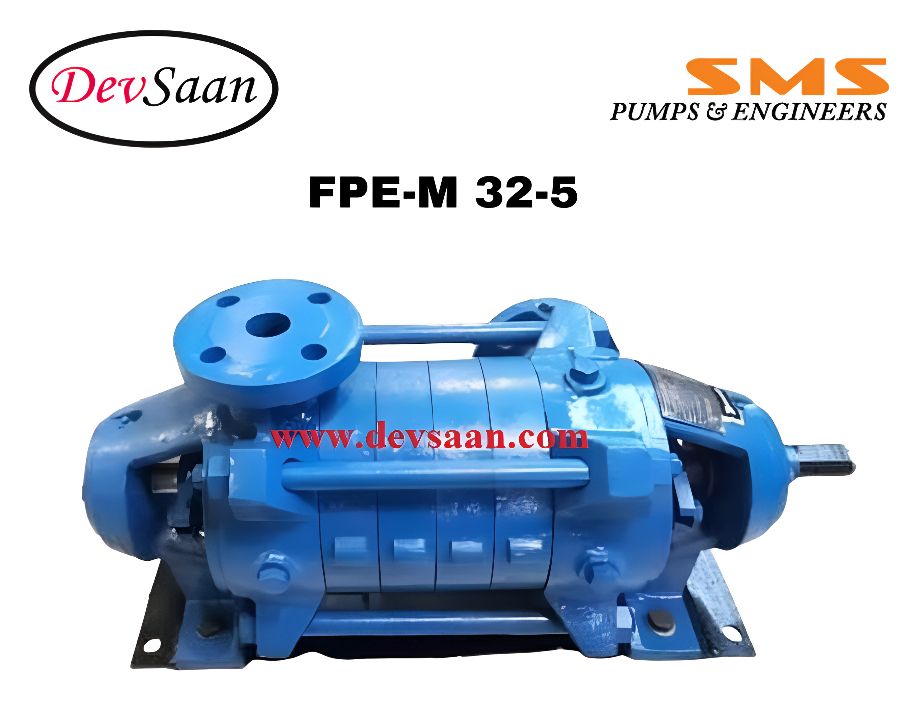

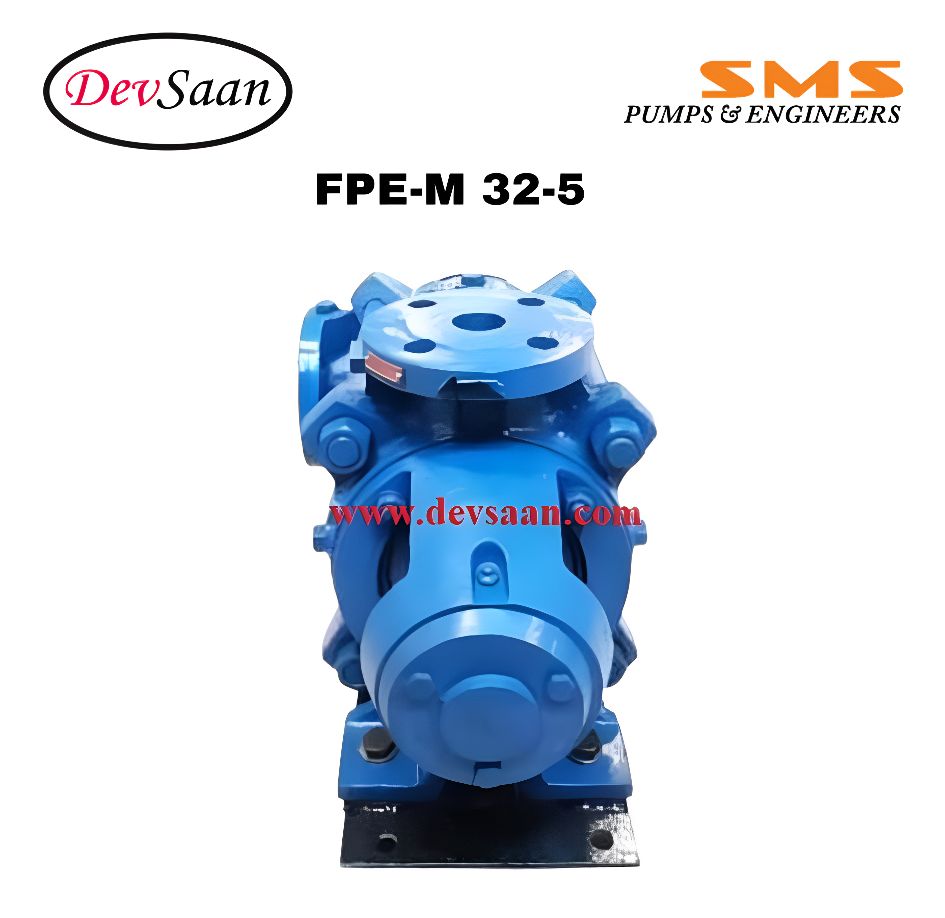

Centrifugal Multistage Pump FPE-M 32-5 Pompa Multistage
Bagikan
Kode CPFPEMX325XX
Rp0
High Pressure Multistage Pump (Teflon packing) - 1,5" x 1,25" - 2900 Rpm
Simpan produk ini untuk nanti
Centrifugal Multistage Pump FPE-M 32-5 Pompa Multistage
Bagikan
Rincian Produk
Model: FPE-M 32-5
Merek: SMS FLOCHEM
Kondisi: Baru
Berat bersih: 77 Kg.
Berat: 90,00 kg
Jual Centrifugal Multistage Pump FPE-M 32-5 Pompa Multistage

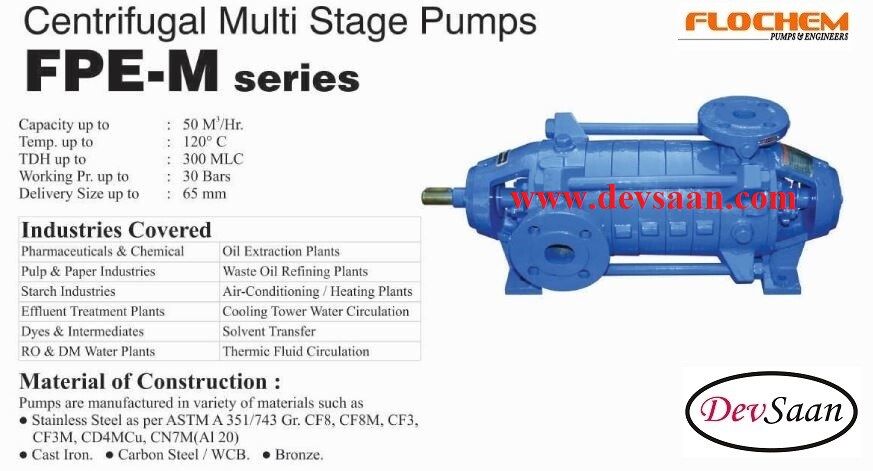

Aplikasi pompa multistage FPE-M : Pemakaian di pabrik kertas & bubur kertas, pabrik kimia, pabrik minyak sawit, kilang minyak, pengolahan air limbah di WWTP & ETP, pabrik gula, pabrik serat rayon, industri tekstil dan produk tekstil (TPT), industri serat, pabrik ekstraksi minyak, penyulingan minyak bekas, air RO & DM dan lain-lain.
Unduh catalog Centrifugal Multistage Pump FPE-M 32-5 Pompa Multistage di sini.

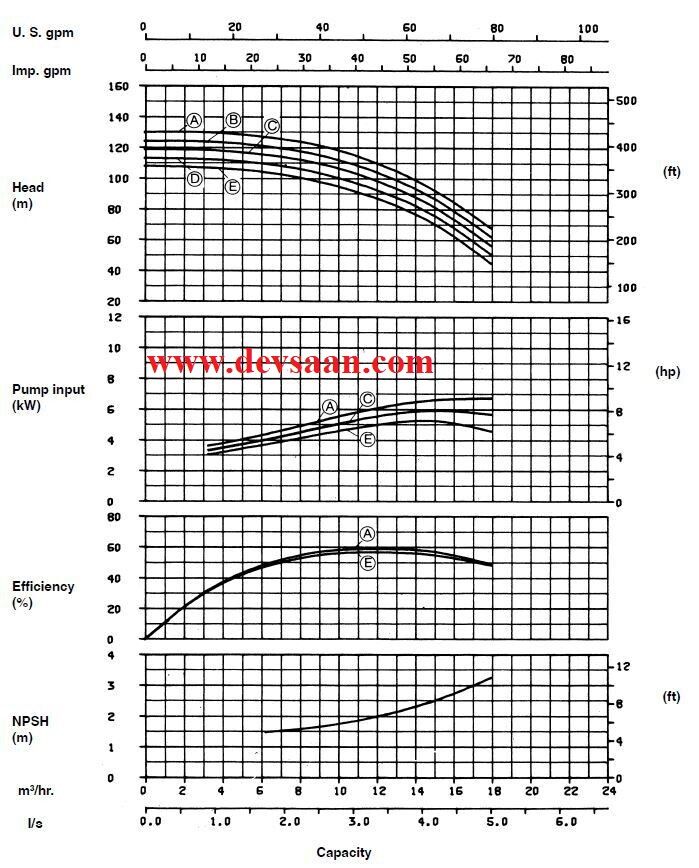

Spesifikasi Centrifugal Multistage Pump FPE-M 32-5 :
| Ukuran | 1,5" (40 mm) x 1,25" (32 mm) |
| Inlet & Outlet | Flange PN 40
|
| Kapasitas / Debit
|
4~15 m3/jam
|
| Head (Vertikal) | 129~91 Mtr |
| Angkat hisap / Suction lift | Hingga 3 Mtr (Dengan Foot valve) |
| Berat jenis (Massa jenis) fluida | Hingga 1,1 (1100 Kg/m3) |
| Suhu fluida | Hingga 80° Celsius |
| Shaft seal | Teflon graphite packing
|
| Shaft BkW | 6,9 kW |
| Kecepatan pompa | 2900 Rpm |
| Sistem perakitan | Horizontal direct inline coupling |
| Kebutuhan daya | 10 Hp (7,5 kW)
|
| Tipe impeller | Tertutup (Closed) |
| Impeller stage | 5 |
Bahan konstruksi Centrifugal Multistage Pump FPE-M 32-5 :
| Casing | Cast iron FG260
|
| Impeller | Cast iron FG260 |
| Shaft | EN-8 |
| Sleeve | SS-410 |
| Bearing Frame | Cast iron FG260 |
| Case fastener | Carbon steel |
| Sealing gasket | Rubber 'O' Ring |
| Bearing | Ball bearing (Oil lubricated)
|
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
| Produk ready stock di perusahaan kami. |
| Garansi Satu (1) tahun untuk kualitas dan performa produk.
Garansi termasuk Free repair dan servis di workshop kami. Garansi tidak termasuk penggantian spare part. |
| Harga sudah termasuk PPN & kami terbitkan Faktur pajak. |
| Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo) |
| Harga sudah termasuk packing. |
| Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393 |
