Name: Centrifugal Pump End Suction KSB ETN 080-065-315 GG
Brand: KSB
SKU: CPKPETG6532XT
Availability: InStock

Cast iron Centrifugal Pump - 3" x 2,5" - 1450 Rpm c/w Elektro Motor 10hp/7,5kw/4pole/B3

SKU CPKPETG6525XT

Cast iron Centrifugal Pump - 3" x 2,5" - 2900 Rpm c/w Elektro Motor 75hp/55kw/2pole/B3

SKU CPKPETG6525XT

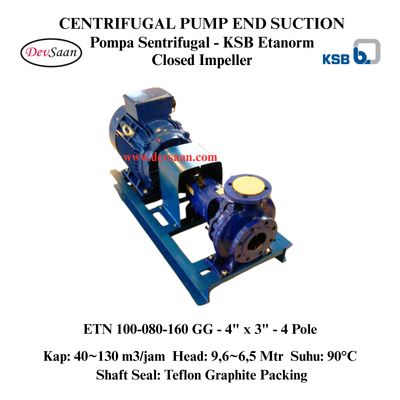

Cast iron Centrifugal Pump - 4" x 3" - 1450 Rpm c/w Elektro Motor 5,5hp/4kw/4pole/B3

SKU CPKPETG8016XT

Cast iron Centrifugal Pump - 4" x 3" - 2900 Rpm c/w Elektro Motor 40hp/30kw/2pole/B3

SKU CPKPETG8016XT

Cast iron Centrifugal Pump - 3" x 2,5" - 1450 Rpm c/w Elektro Motor 5,5hp/4kw/4pole/B3

SKU CPKPETG6520XT

Cast iron Centrifugal Pump - 3" x 2,5" - 2900 Rpm c/w Elektro Motor 40hp/30kw/2pole/B3

SKU CPKPETG6520XT

Cast iron Centrifugal Pump - 3" x 2,5" - 1450 Rpm c/w Elektro Motor 3hp/2,2kw/4pole/B3

SKU CPKPETG6516XT

Cast iron Centrifugal Pump - 3" x 2,5" - 2900 Rpm c/w Elektro Motor 25hp/18,5kw/2pole/B3

SKU CPKPETG6516XT

Ukuran	3" (80 mm) x 2,5" (65 mm)
Inlet & Outlet	Flange ANSI B.16.5 Class #150
Kapasitas / Debit (2900 Rpm) Head (Vertikal) (2900 Rpm)	70~192 m3/jam 147~120 Mtr
Angkat hisap / Suction lift	Hingga 4 Mtr (Dengan Foot valve)
Berat jenis (Massa jenis) fluida	Hingga 1,1 (1100 Kg/m3)
Suhu fluida	Hingga 90° Celsius
Shaft seal	Teflon graphite packing
Shaft BkW	91 kW @ 2900 Rpm
Kecepatan pompa	2900 Rpm
Sistem perakitan	Horizontal direct inline coupling
Kebutuhan daya	150 Hp (110 kW) @ 2900 Rpm
Impeller diameter	320 mm
Tipe impeller	Tertutup (Closed)

Casing	Grey Cast iron A 48 CL 35B
Impeller	Cast iron
Shaft	45C8
Sleeve	SS-410
Bearing Frame	Cast iron
Bearing	Ball bearing (Grease lubricated)

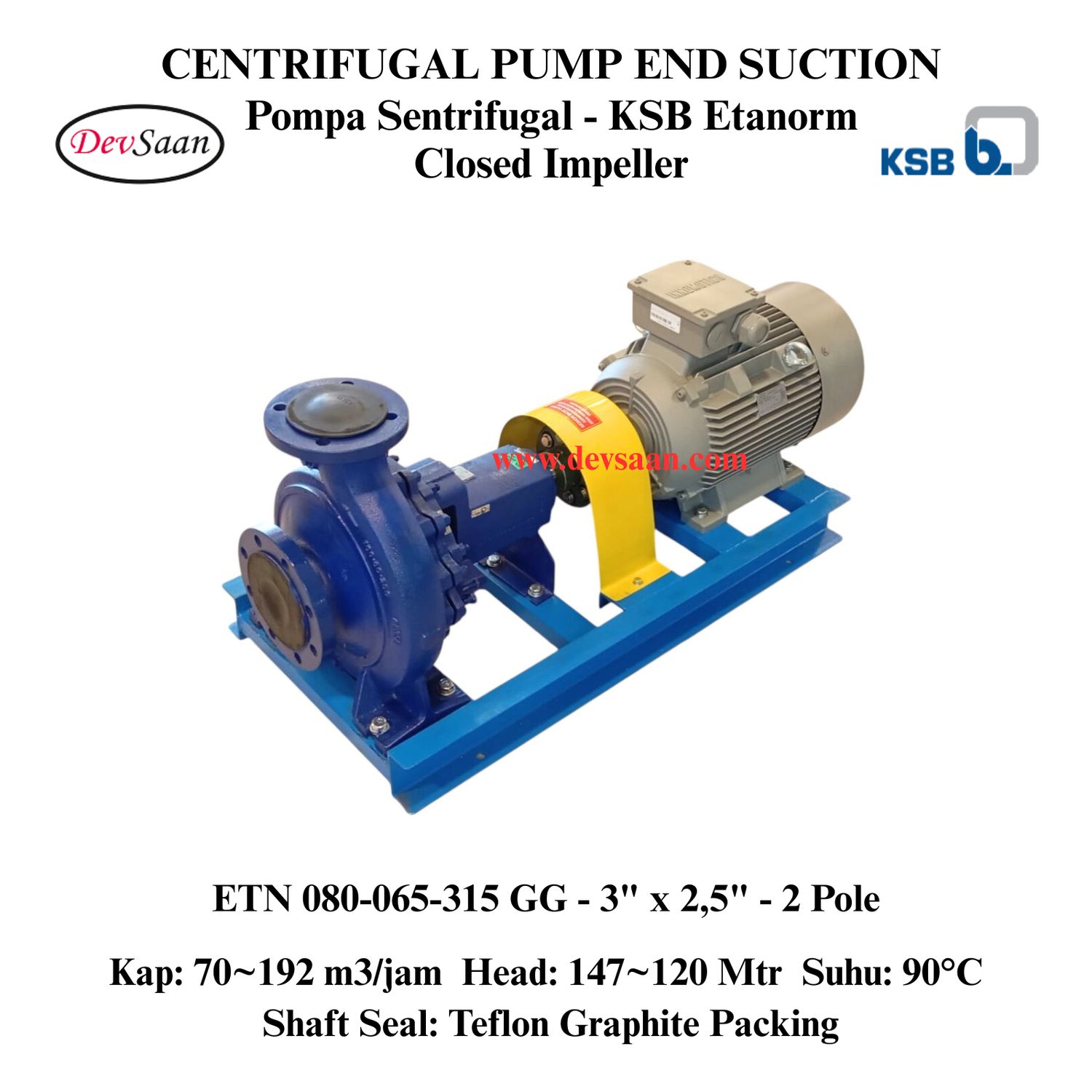

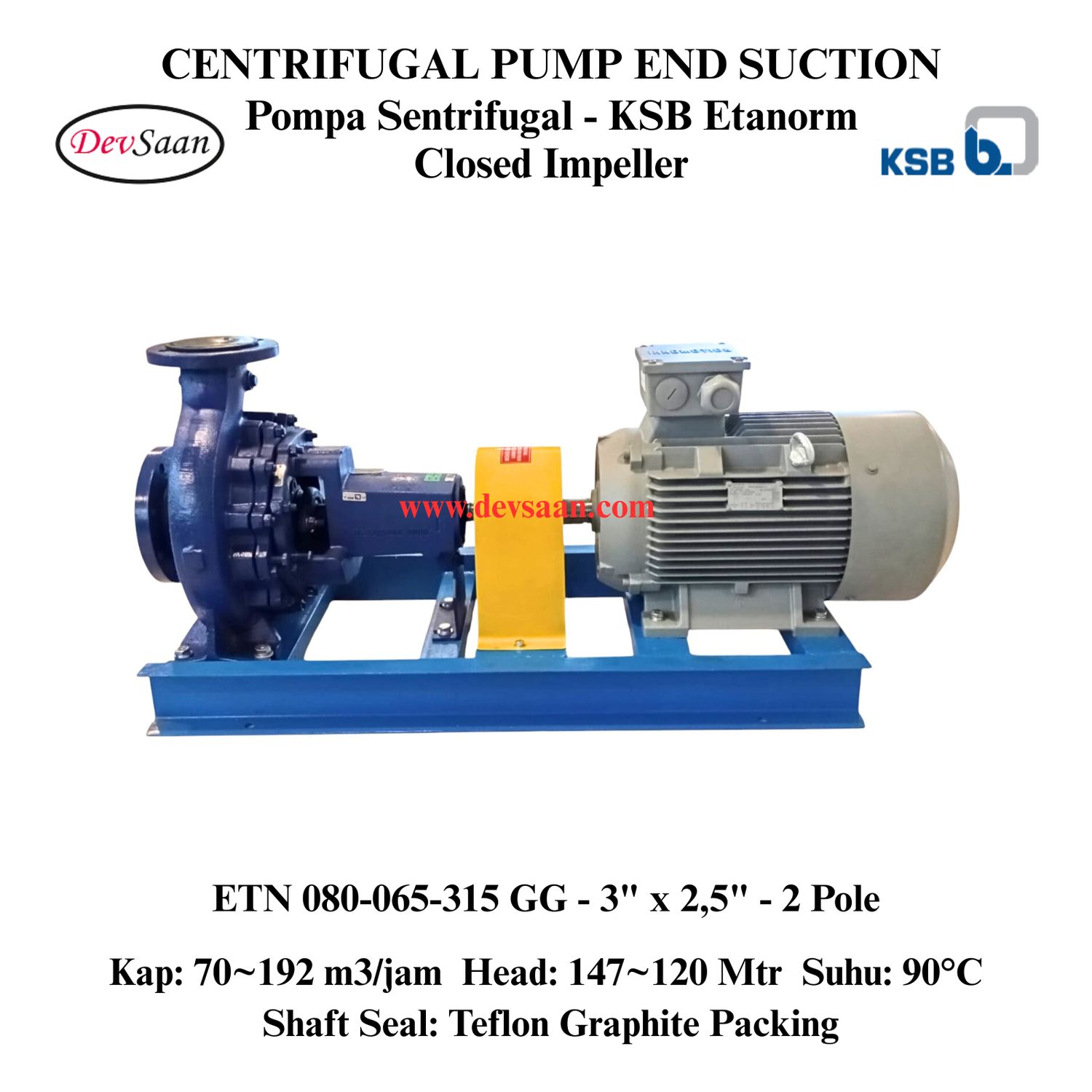

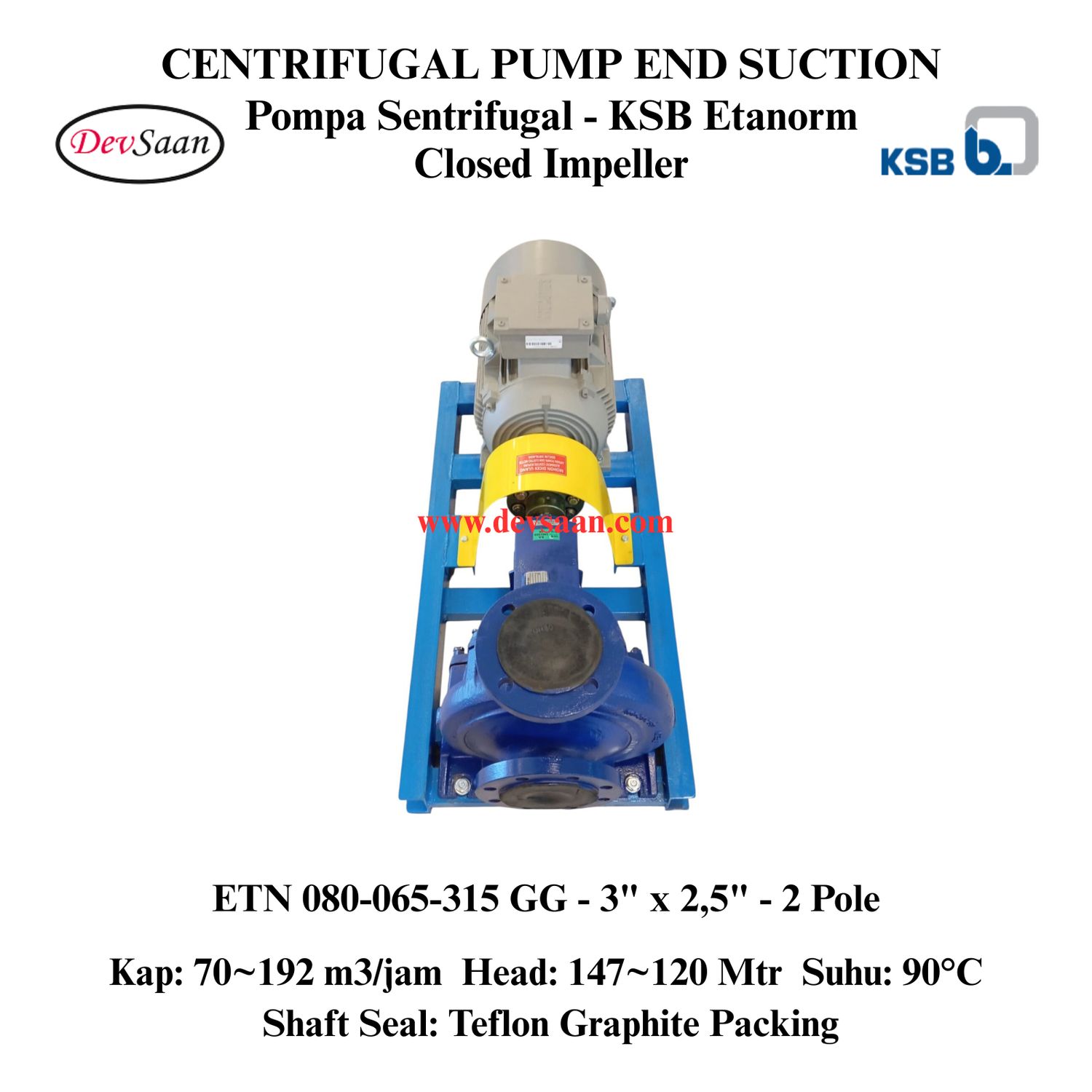

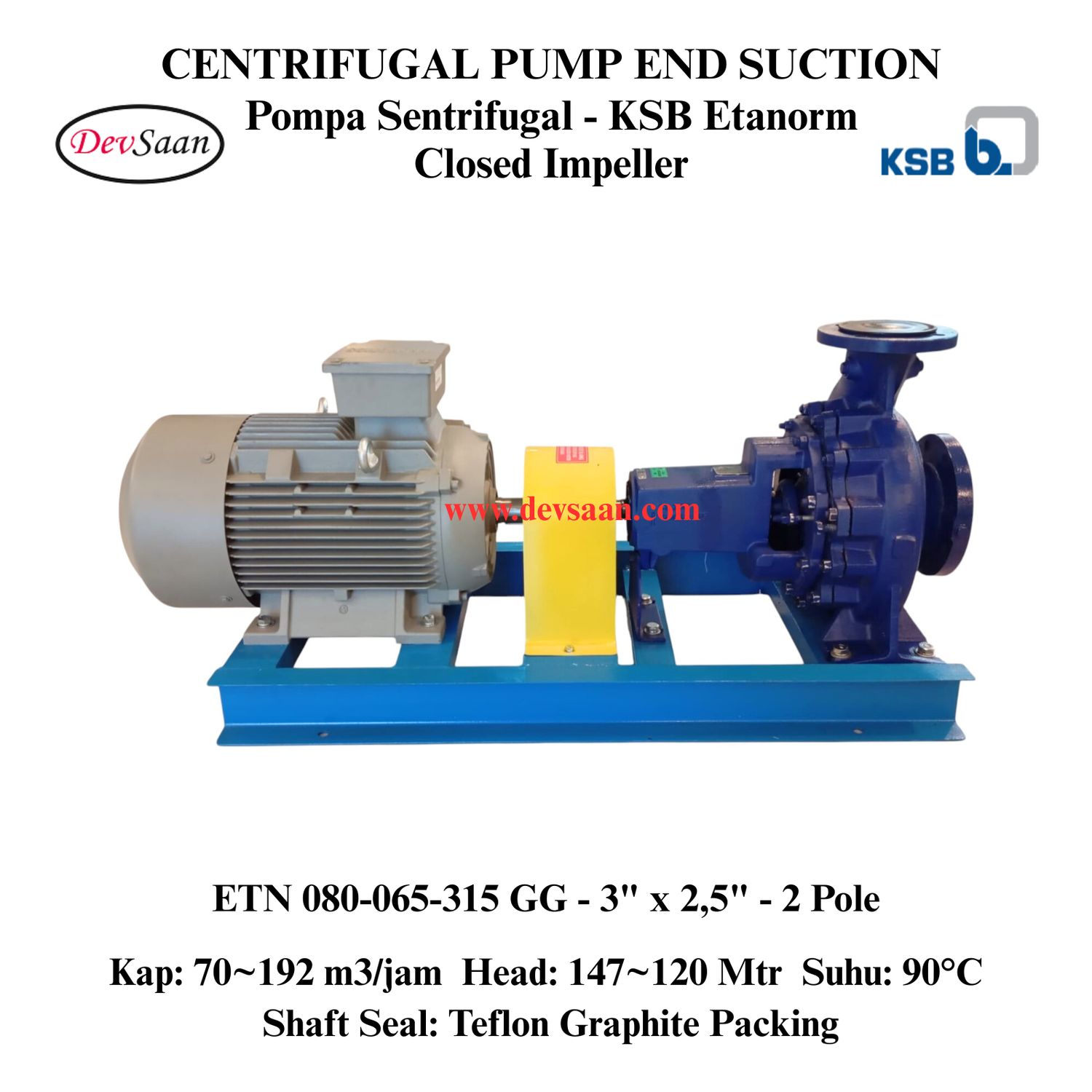

Centrifugal Pump End Suction KSB Etanorm ETN 080-065-315 GG Komplit Set 2pole
