Name: Jaw Coupling S 225 Flex-C Max Bore 65mm Standard Star Spider
Brand: Flex-C
SKU: JCS225XXXXXX
Availability: InStock

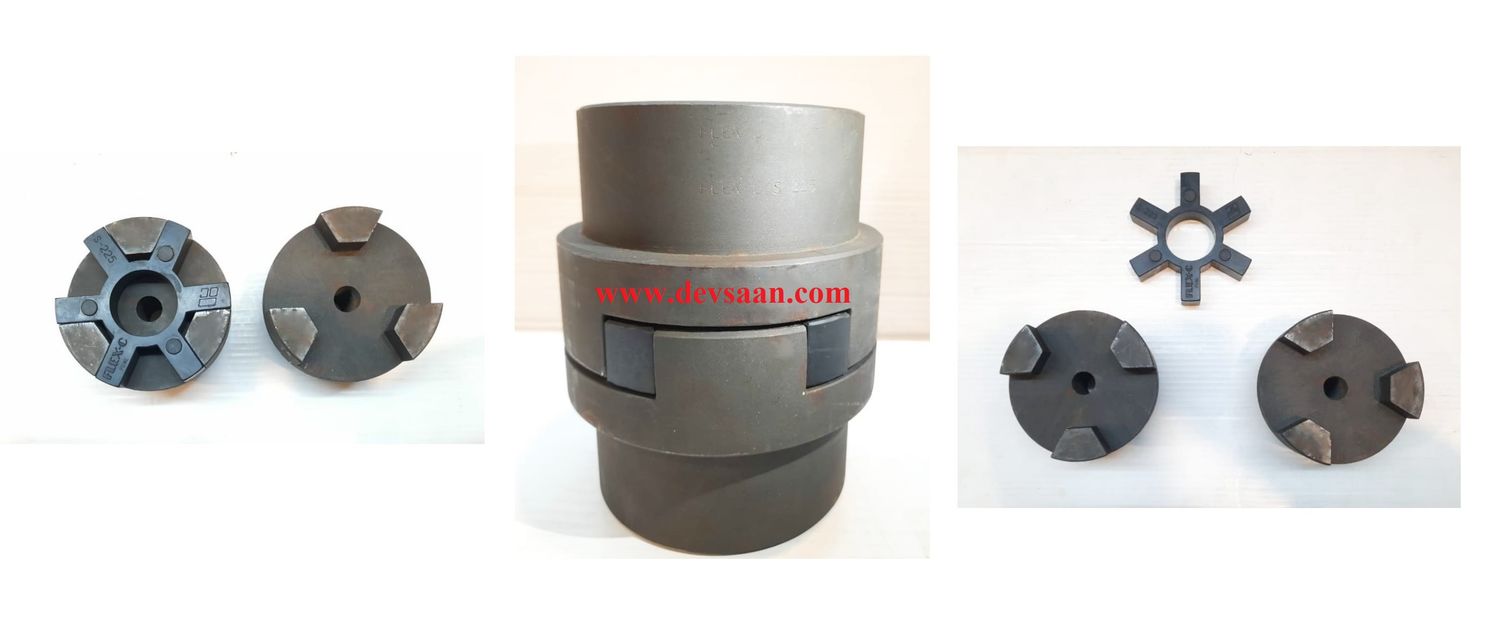

Jaw Coupling S 225 Flex-C Max Bore 65 mm

Rincian Produk

Model: S 225

Merek: Flex-C

Kondisi: Baru

Berat bersih: 10 Kg.

Berat: 11,00 kg

Jual Jaw Coupling S 225 Flex-C Max Bore 65mm

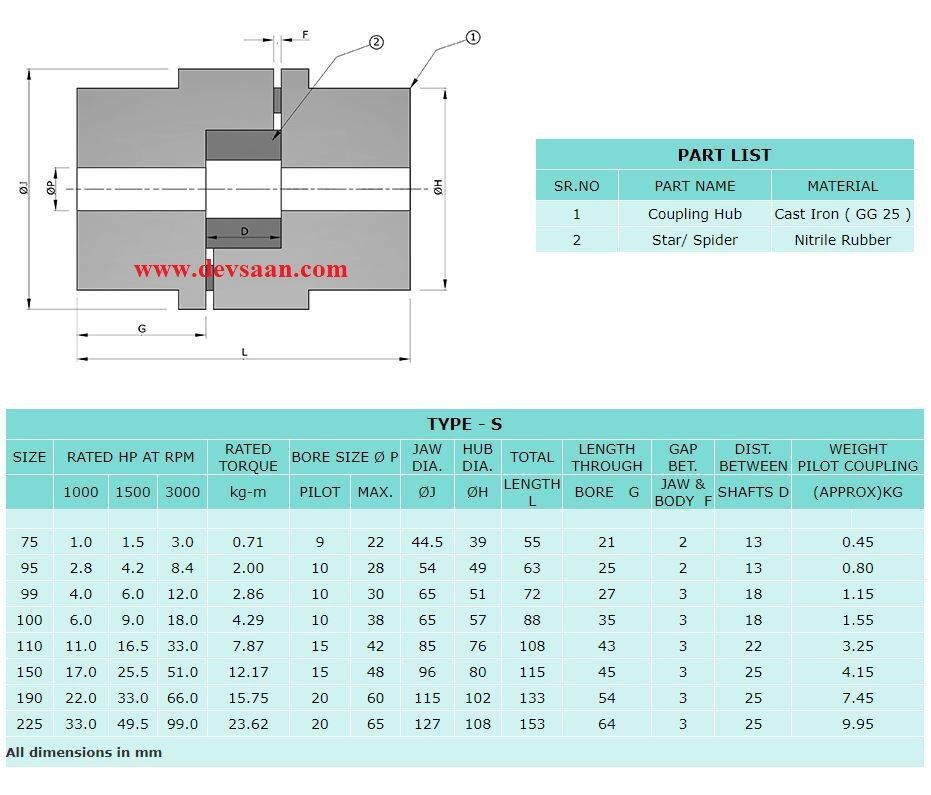

(Dimensi coupling dapat dilihat di brosur terlampir)

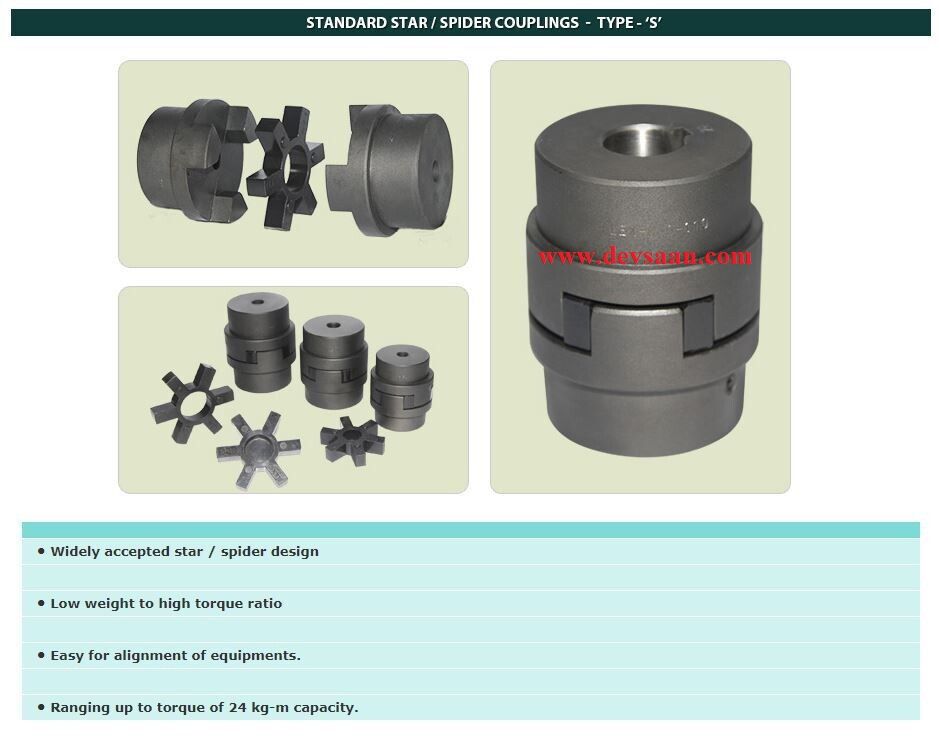

- Standard Star / Spider Coupling

- Low weight to high torque ratio

- Easy for alignment of equipment

- Torque range up to 24 kg-m (235.36 n-m)

spesifikasi Jaw Coupling S 225 :

Model	225
Coupling type	Jaw Flex
Colour	Black
Rated Hp (kW) : @ Speed 1000 Rpm @ Speed 1500 Rpm @ Speed 3000 Rpm	33 (24,75 kW) 49,5 (37,125 kW) 99 (74,25 kW)
Rated Torque	23,62 kg-m (231,63 n-m)
Pilot bore size	20 mm
Max bore size	65 mm
Jaw diameter	127 mm
Hub diameter	108 mm
Total length	153 mm
Length through bore	64 mm
Gap between Jaw & Body	3 mm
Distance between shafts	25 mm

Bahan konstruksi Jaw Coupling S 225 :

Coupling hub	Graded Cast Iron (GG 25) Phospated
Star / Spider Rubber Element	Nitrile Rubber (NBR)

Misalignment tolerance :

Parallel misalignment up to 0.4 mm

Angular misalignment up to 1.5 degree

Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :

PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180

Coupling & Rubber Element ready stock di perusahaan kami.

Harga sudah termasuk PPN & kami terbitkan Faktur pajak.

Harga sudah termasuk ongkir (*Sesuai harga barang & menggunakan JNE / J&T / Ekspedisi kargo)

Harga sudah termasuk packing.

Hubungi kami di (021) 62308030 / 62308035 atau WA 081388920119 dan 087782736393

Hubungi kami di Whatsapp - Sales 081388920119 , 087782736393 / Konsultasi Teknis 085719196960
